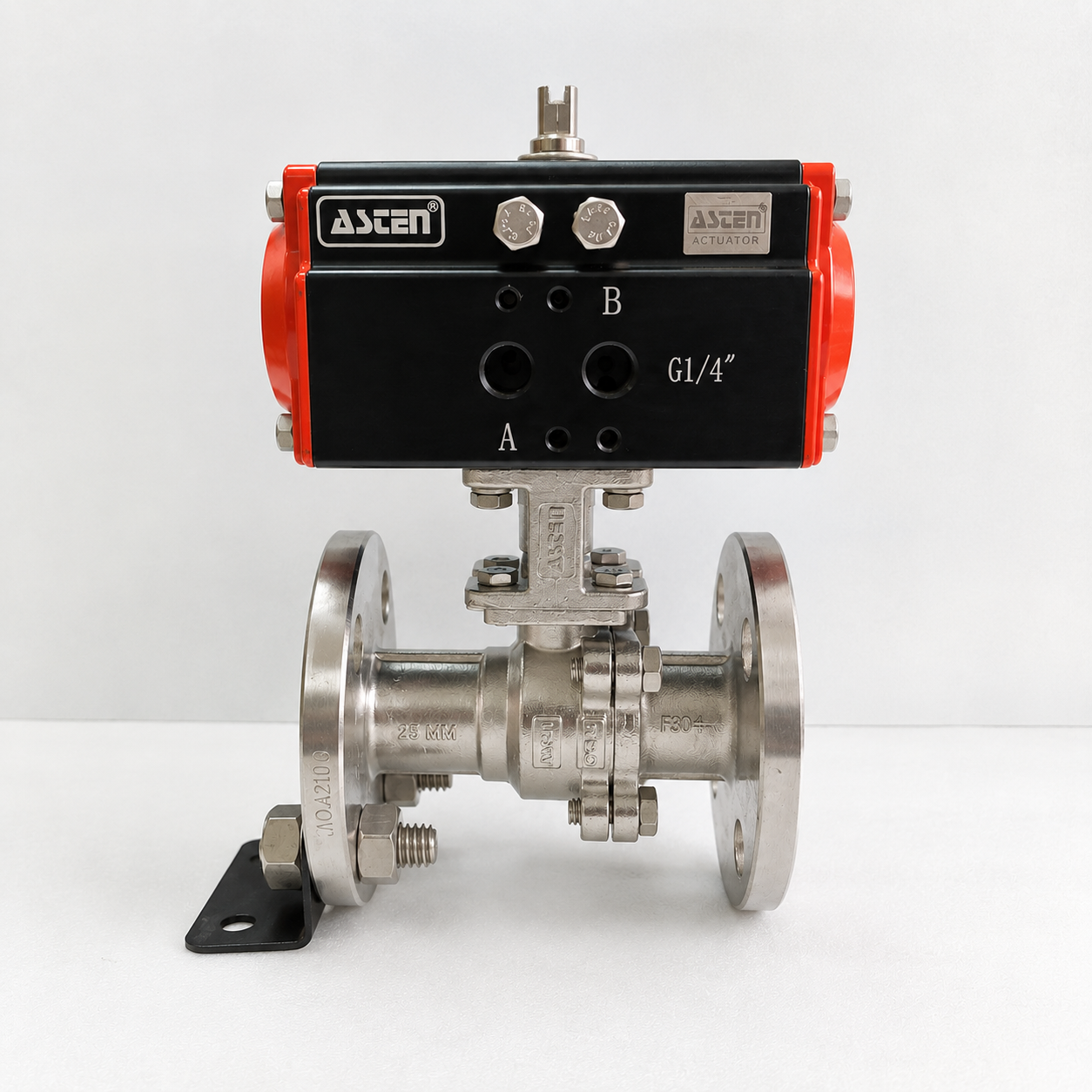

2 Piece Ball Valve
Description2 Piece Ball Valve Manufacturer
A 2 Piece Ball Valve is the most widely used type of valve that provides excellent shut-off and flow control. This valve comes with a two-piece body design, which ensures its high level of sealing, ease of installation, and durability. It can be used for transportation of liquids, gases, steam, and other industrial media with different pressure and temperature.
Being a recognized 2 Piece Ball Valve Manufacturer and supplier in India, we offer a wide range of precision-made valves made from the best quality stainless steel with the help of advanced technology.
What is a 2 Piece Ball Valve?
A Two-Piece Ball Valve is a quarter turn valve which is manufactured in two pieces of body that are put together about the internal ball and seats. The structure makes it easy to maintain while keeping good mechanical strength and sealing capability.
The split body design offers convenience in assembling and maintenance compared to a one-piece valve with good structural strength and compact structure. It also facilitates better access to internal parts in the process of maintenance.
Features of Asten 2 Piece Ball Valve
- Full Bore Design – Allows unrestricted flow and reduced pressure loss.
- Low Torque Operation – Enables easy operation due to smooth rotation of the ball.
- Blow-out Proof Stem – Offers enhanced safety when operating at high pressures.
- Anti-static Device – Avoids generation of static electricity while handling flammable process fluids.
- Fire Safe Design – Ensures sealing integrity even in case of fire.
- PTFE / RPTFE Seats – Superior quality seats provide reliable sealing and low friction capabilities.
- High Corrosion Resistance – Constructed from stainless steel provides superior corrosion resistance.
- ISO 5211 Mounting – Standardized mounting pad allows easy mounting to actuator for automation.
Technical Specifications
| PARAMETER | SPECIFICATION / VALUE |
|---|---|
| 📏 Size | DN15 – DN300 |
| ⚙️ Pressure | PN16 · Class 150 · Class 300 |
| 🔩 Material | WCB · CF8 · CF8M · SS304 · SS316 |
| 🛡️ Seat | PTFE · RPTFE · PEEK |
| 🔗 End Connection | Flanged / Threaded |
| 🌡️ Temperature Range | −20°C → 200°C |
| 🎛️ Operation | Manual / Pneumatic / Electric |
Available Material Options
Majority of 2 Piece Ball Valve manufacturer in India offers this valves invarious materials options. Asten Controls technical expertise and production excellence enable them to provide customized product solutions. Some of our available material options for 2 Piece Ball Valve is given as below.
- SS304 2 Piece Ball Valve
- SS316 2 Piece Ball Valve
- WCB 2 Piece Ball Valve
- CF8 & CF8M Ball Valve
End Connection Options
Flanged Ends
Flanged ends provide reliable bolted connection and are used where frequent maintenance and inspection is needed on the pipeline.
Threaded Ends
Threaded ends provide easy installation and are commonly used in utility services and industrial pipelines.
Socket Weld
Socket weld ends provide strong and reliable joints for high-pressure pipelines with small diameter pipes.
Butt Weld
Butt weld ends provide permanent and highly resistant joints for critical industrial pipelines.
Applications of 2 Piece Ball Valve
2 Piece Ball Valve are utilized in several industries to fulfill several applications. Some of the applications are given as below:
Oil & Gas
2 Piece Ball Valve is used in oli and gas industries for safe isolation and flow control for crude oil, natural gas, fuel and process fluids.
Chemical Plants
It is used for transporting corrosive chemicals, solvents, acids, and various industrial liquids with a secure seal.
Water Treatment
2 Piece Ball Valves are appropriate for use in filtering systems, pumping stations, and water distribution systems with a secure seal.
Pharmaceutical
2 Piece Ball Valve provides a clean system without any contamination that can be used in the pharmaceutical industry.
Food Processing
This valve is perfect for food-grade processing systems which require corrosion resistance and secure shut off.
HVAC
They are used in the heating, cooling, and utility pipeline systems to control water or other service fluids.
Power Plants
2 Piece Ball Valves are suitable for handling steam, condensate, cooling water, and various auxiliary pipe systems.
Paper Industry
Two Piece Ball Valves can manage pulp, water, chemicals, and various process fluids with consistent operation.
Textile Industry
These valves are useful in dyeing, chemical processing, and water distribution systems in textile manufacturing plants.
Advantages of 2 Piece Ball Valve
2 Piece Ball Valve have several advanatges than convenient traditional ball valves. Being a leading 2 Piece Ball Valve manufacturer and supplier our offered ball valve offer several advanatges.
- Maintenance needs are low resulting in fewer downtimes and lower overall maintenance costs.
- Servicing is easy due to fast inspection and replacement of internal parts.
- The small design helps to save installation space and provides high durability.
- Leak-free sealing allows for accurate process control and prevention of losses during operations.
- Long life ensures that the valve can be used in harsh industrial operations on a continuous basis.
- Compatibility with actuators means that it can be used as the Industrial Flow Control Valve for automatic systems.
Why Choose Asten Controls?
Known as one of the leading 2 Piece Ball Valve manufacturer and supplier in India, we strive to provide our clients with the best valves that meet their needs.
- ISO Manufacturing guarantees quality production and control processes.
- Custom sizes for specific industrial and pipeline use.
- High quality testing of all valves before dispatch.
- Quick delivery schedules to save time for our clients.
- Support from our technical staff in product selection.
Testing & Quality Standards
All Leak Proof Ball Valves are thoroughly tested to ensure their dependable performance in industrial conditions.
- API 598 – Inspection, pressure test and leakage test for valves.
- ISO 17292 – Manufacturing specification for industrial metal ball valves.
- BS 5351 – Design and performance specification for steel ball valves.
- ASME B16.34 – Pressure-temperature ratings, design specification and material specification.
- Fire Safe Test – To confirm valve integrity and sealing performance during fire exposure.
- Hydro Test – To confirm body strength and seat sealing with respect to specific pressure.
Frequently Asked Questions
What is a 2 Piece Ball Valve?
2 Piece Ball Valve is a shut-off valve having quarter turn action that offers sealing capability, ease of maintenance, and flow control efficiency.
Where are 2 Piece Ball Valves applied?
These valves have wide applications in oil & gas, chemical, water, pharmaceutical, food processing, power plant, HVAC, marine, paper mills and textile industries.
What materials are available?
These valves are made available in stainless steel grades such as SS304 Ball Valve and SS316 Ball Valve, along with different seat material such as PTFE and RPTFE.
What pressure can it handle?
Pressure rating varies according to the size, material, and design of the valve. Industrial valves can also come in high and standard pressure ratings.
Is it capable of automation?
Yes, most valves have ISO 5211 mounting pads; therefore, the valve can work with pneumatics and electric actuators.
