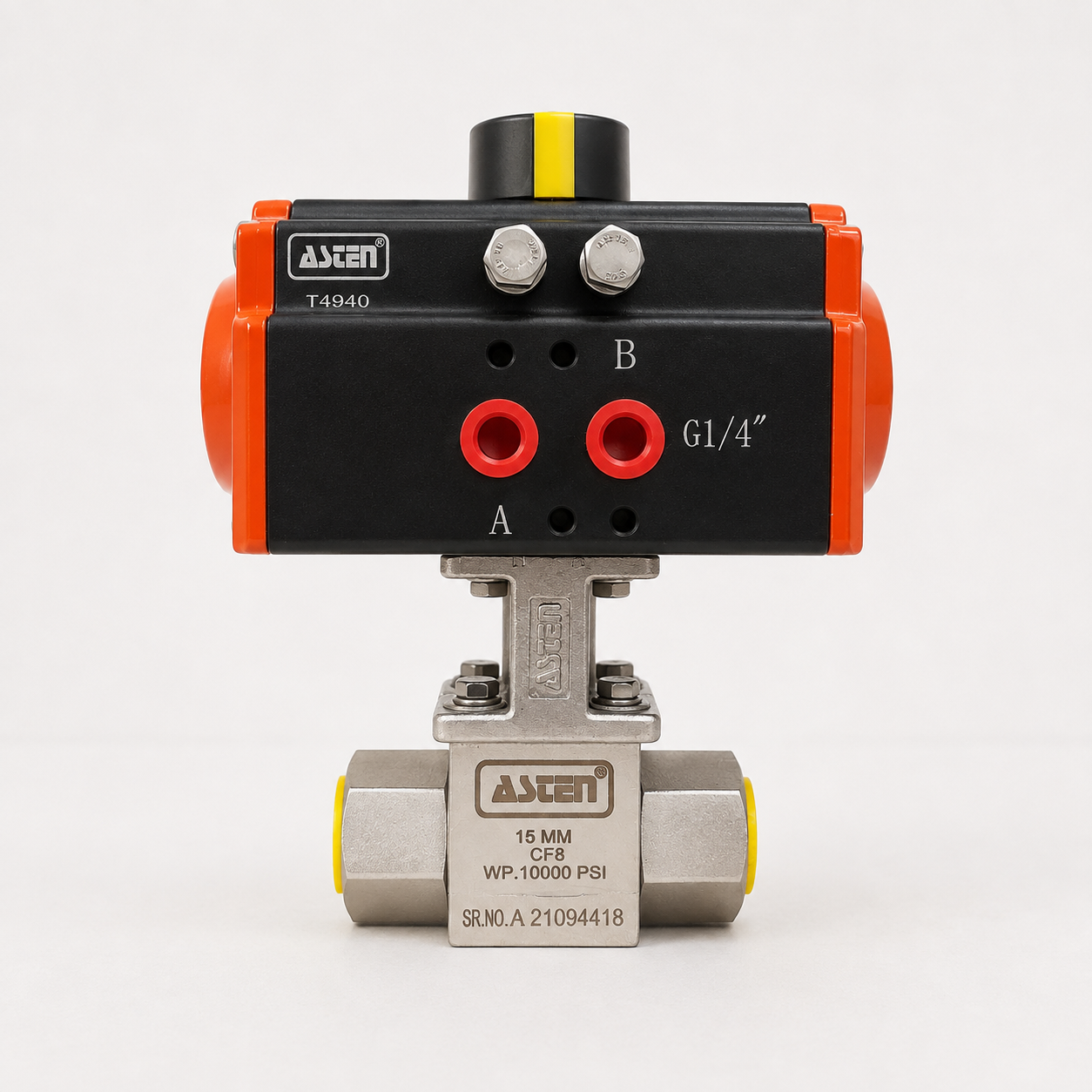

High Pressure Ball Valve
DescriptionHigh Pressure Ball Valve Manufacturer
Asten Controls is a leading High Pressure Ball Valve Manufacturer & Supplier in India, offering ball valves that can reliably perform in high pressure industrial applications. Our high pressure ball valves are engineered carefully to ensure smooth flow control with excellent durability and sealing. We manufacture high precision ball valves using premium grade materials. These are widely demanded in industries such as oil & gas, petrochemicals, power plants, chemical processing, hydraulic systems, and industrial automations. High Pressure Ball Valves have been designed for effective and secure flow control under high pressure, where normal valves are unable to give efficient performance. With our expertise as the High Pressure Ball Valve Manufacturers, we are able to provide quality valves meeting international standards of quality.
What is a High Pressure Ball Valve?
High Pressure Ball Valve is a quarter turn valve that has been designed to control the flow of fluids and gases under high pressure conditions. It has a spherical ball that has a passage bored along the center of the ball to control the flow of fluid.
Main functions of a high pressure ball valve include shut off with minimum pressure loss and also ensure safe operation of fluid handling process in industries.
Principle of Operation
High Pressure Ball Valve works on the principle of quarter turn movement. The valve design has either a floating ball or a trunnion ball depending on the pressure rating and valve dimensions. In case the handle/actuator turns the stem by 90 degrees, the ball present in the valve rotates along with it.
Once the bore is aligned with the pipeline, the fluid flows unhindered. Once rotated by 90 degrees, the ball puts its solid end on the flow path and thus creates an effective shut-off device which does not allow any fluid to pass through it.
Key Features
Resistance to High Pressure
Our Industrial High Pressure Ball Valve is designed to work in high operating pressures without any loss in terms of sealing efficiency. The robust valve body and precision components make it possible for them to operate safely under tough industrial conditions.
Bubble Tight Sealing
High-quality seat material and precision machining ensure that our valves do not leak. Bubble tight sealing ensures minimum losses of the products and maximum process safety.
Heavy Duty Construction
All Heavy Duty Ball Valves are made from premium industrial quality materials which are strong, durable and wear resistant.
Low Torque
Even though these valves work under high pressures, the valve design ensures easy turning and low torque due to its high precision.
Long Life Span
With high quality of materials used, high manufacturing standards, and good sealing systems, the maintenance needs decrease, and the valve lifespan increases.
Technical Specifications
| PARAMETER | SPECIFICATION |
|---|---|
| 🔵 Valve Type | High Pressure Ball Valve |
| 🎛️ Operation | Lever · Gear · Pneumatic · Electric |
| 📏 Size Range | ¼” – 4″ (DN8 – DN100) (or as per product range) |
| 💨 Pressure Rating | Up to 10,000 PSI (Depending on Design) |
| 🔗 End Connection | Threaded · Socket Weld · Butt Weld · Flanged |
| ↔️ Port Type | Full Port / Reduced Port |
| ⚪ Ball Material | SS304 · SS316 · Duplex SS |
| 🔩 Body Material | Stainless Steel · Carbon Steel · Alloy Steel |
| 🛡️ Seat Material | PTFE · RPTFE · PEEK · Nylon |
| 🔧 Stem Material | SS304 / SS316 |
| 🔒 Seal Material | PTFE · Graphite |
| 🌡️ Temperature Range | −20°C to +250°C (Depending on Seat Material) |
| 💧 Leakage Class | Bubble Tight Shut-Off |
| 📐 Design Standard | ASME B16.34 |
| ↔️ Face to Face | ASME B16.10 |
| ✓ Testing Standard | API 598 |
| ⭕ Flange Standard | ASME B16.5 |
Materials of Construction
Body Materials
For creating High Pressure Valve India solutions we use the best industrial materials that can be applied in different operating conditions.
- Stainless Steel 304
- Stainless Steel 316
- Carbon Steel
- Duplex Stainless Steel
- Alloy Steel
Every material has certain characteristics depending on pressure rating, operating temperature, corrosion resistance, and media compatibility.
Seat Materials
The choice of seat material is important for the performance and life span of the valve.
Options include:
- PTFE
- Reinforced PTFE
- PEEK
- Nylon
These materials offer excellent resistance against chemicals, low friction, and proper sealing despite changing pressure and temperatures.
Seal Materials
The seal materials we use are chosen based on the demands of the application.
The seal materials include:
- PTFE
- Graphite
- Viton
These sealing materials help in ensuring reliable sealing without the risk of leaks despite the varied industrial environments.
Pressure Ratings
Standard Pressure Classes
| PRESSURE CLASS | SERVICE / APPLICATION |
|---|---|
| Class 800 | High Pressure Service |
| Class 1500 | Severe Service |
| Class 2500 | Critical High Pressure Applications |
| PN40 | Industrial Applications |
| PN63 | Heavy Duty Applications |
| PN100 | High Pressure Systems |
Working Principle
Valve Open Position
In opening the valve, rotating the handle or actuator results in rotation of the ball to the open position. In this case, the bore in the ball is aligned with the pipeline. The result is unobstructed flow of fluids with low pressure drop and optimal efficiency of flow.
Valve Closed Position
When the valve is turned through 90 degrees, the solid portion of the ball blocks the path of flow. This creates a positive shut off without any leaks, despite the high pressure at which the fluids might be flowing.
Quarter Turn Design
The valve works on the principle of a simple quarter turn. This means that from full open position to a full shut off position requires 90-degree rotation only.
Applications & Industries
Petrochemical Industry
Highly utilized in high-temperature and high-pressure process lines in order to ensure safety and continuous plant operations.
Hydraulic System
Hydraulic High Pressure Ball Valve products are widely applied in hydraulic power packs, industrial machinery, presses, and mobile equipment operating at extremely high pressures.
Power Plants
Appropriate for steam systems, condensate lines, boiler process, and auxiliary process pipes where strength and pressure resistance are required.
Water Treatment
Applied in industrial water distribution systems, filtration equipment, reverse osmosis systems, and high-pressure pumping stations.
Pharmaceutical Industry
Produced from hygienic material and with precision finish in order to meet requirements of clean process applications.
Food & Beverages
Suitable for high-pressure process systems requiring product purity, anti-corrosion and reliable sealing.
Why Choose Asten Controls?
Asten Controls is a reliable manufacturer and supplier of High Pressure Ball Valves in India, known for offering best valve solutions for important industrial applications. Our ball valves are engineered using premium quality raw materials and advanced machineries. They are developed to provide best performance in extreme temperature, pressure and operating conditions. Asten High Pressure Ball Valves are well known for their long service life and leak proof performance. Known as the leading High Pressure Ball Valve manufacturer, we offer a wide range of pressure class, size, end connections and automated valve options to fulfil custom requirements of industries. Asten has become the preferred choice for industries due to their technical support, competitive pricing, quality standard and on-time delivery. Contact us to get high-performance high pressure ball valves.
Frequently Asked Questions
What is a High Pressure Ball Valve?
It is a quarter-turn valve that is able to manage or control fluids at high pressure levels.
At what pressure level can it operate?
High pressure ball valves have different pressure ratings based on the design, material, size and standards followed. The high pressure ball valve can handle pressure levels from hundreds of PSI to thousands of PSI.
In which industries are they commonly applied?
High pressure ball valves are extensively used in the oil and gas industry, petrochemical industry, chemical processes, hydraulics, energy, pharmaceuticals, water treatments, food processing and many others.
Which material is suitable?
Material selection varies from one application to another. Stainless Steel 316, Carbon Steel, and Duplex Stainless Steel are among the most common materials for high pressure ball valves.
Can they be automated?
Yes. High Pressure Ball Valves can be automated with the help of electric, pneumatic or hydraulic actuators.
Request a Quote
Are you searching for the best High Pressure Ball Valve Manufacturer and Supplier in India? Get in touch with our support team to get best customized valve solutions at market leading prices for your industrial applications. You can contact us directly or send your requirements to get the best product quote.
