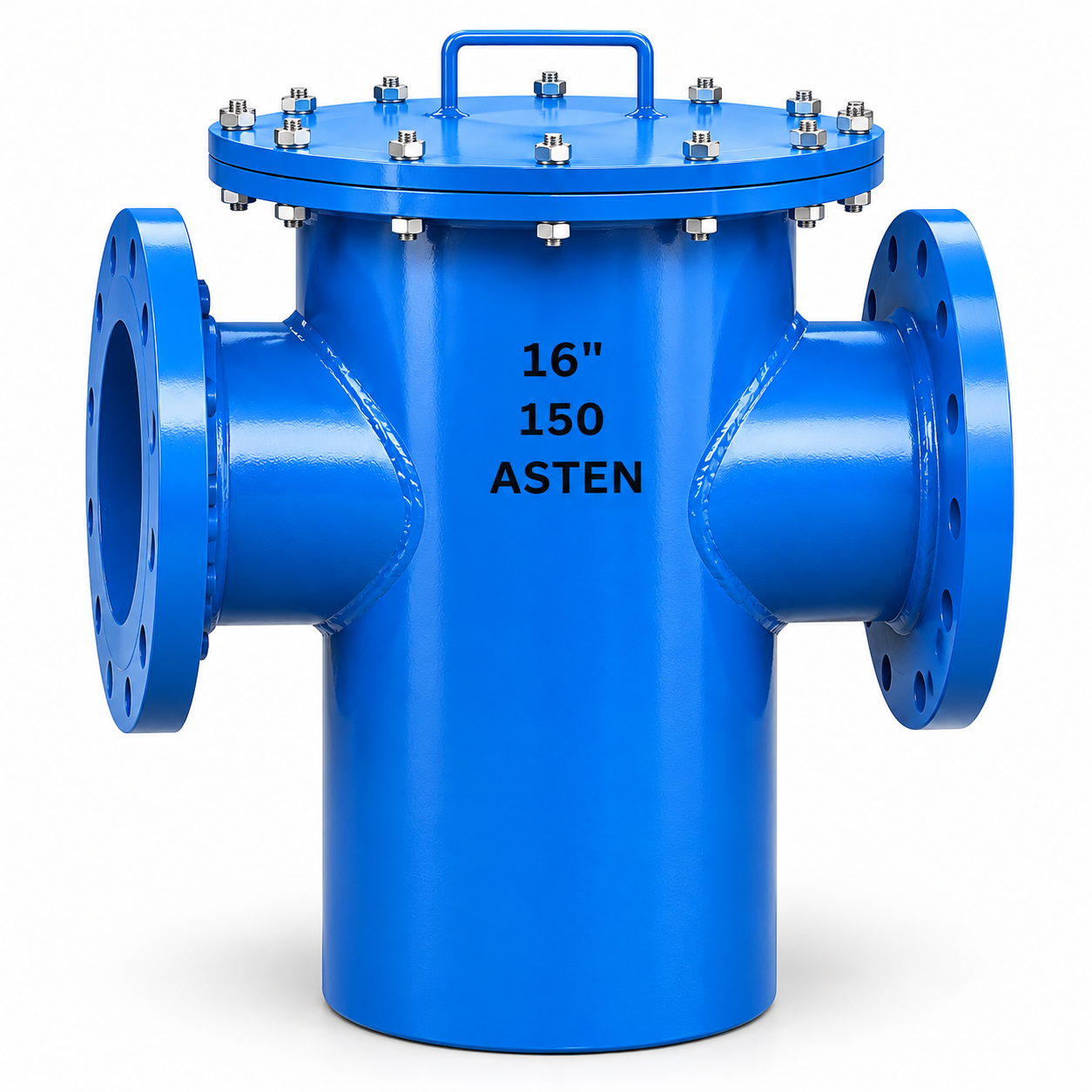

T Type Strainer

T Type Strainer Manufacturer in India

Asten Controls is an industrial valve and flow-control equipment manufacturer, supplier and exporter in India, with its manufacturing facility based in Ahmedabad, Gujarat. The company provides engineered solutions for industrial flow-control applications and serves industries including oil and gas, water treatment, pharmaceuticals, power, chemicals and other process industries.

As part of its Strainers/Filtration range, Asten Controls offers filtration solutions designed to help protect pipelines, valves, pumps and other downstream equipment from unwanted solid particles. A T Type Strainer can be considered for applications where inline filtration is required without interrupting the overall pipeline flow arrangement.

As a T Type Strainer manufacturer in India, Asten Controls focuses on selecting suitable materials, configurations and filtration requirements according to the application. The company can also support customers looking for an industrial T Type Strainer, T Type Strainer supplier or pipeline strainer manufacturer for different industrial flow systems.

With its engineering experience, Ahmedabad manufacturing base and focus on quality-controlled industrial products, Asten Controls works with customers to identify suitable filtration solutions for their process and pipeline requirements.

What Is a T Type Strainer?

T Type Strainer is a mechanical filtering device used in the pipeline system to filter out unwanted solid particles and debris from process fluids or gases. It has a T-shaped body with a screening device inside, which traps contaminants while allowing the process fluid to pass through the pipeline.

The major use of the T-type strainer is to prevent contamination of the process fluid and protect downstream equipment from any potential solids present in the process medium. There may be dirt, rust, scale, welding, and other foreign materials present in pipelines after installation and maintenance works and even during normal operations. In case these foreign materials get into sensitive equipment, such as pumps, valves, meters, heat exchangers, etc., they can damage this equipment, clog and reduce its operational performance.

The T-shaped body ensures enough space for the screening element and keeps the process of fluid flow through the pipeline. When the process fluid flows through the strainer, it goes through the internal screen, and all particles larger than the selected screen openings remain trapped there.

How Does a T Type Strainer Work?

A T Type Strainer works by filtering unwanted solid particles from a process fluid before the fluid reaches downstream equipment such as pumps, valves and other pipeline components. Its basic operation is straightforward:

1. Process fluid enters the strainer
   The fluid enters the T Type Strainer through the designated inlet connection and flows towards the filtration element.
2. Fluid passes through the filtration element
   As the fluid moves through the strainer, it passes through a perforated or mesh filtration screen selected according to the required filtration level.
3. Solid particles are retained
   Dirt, scale, rust and other unwanted particles larger than the screen openings are retained by the filtration element.
4. Filtered fluid continues through the pipeline
   After passing through the screen, the filtered fluid exits the strainer and continues towards downstream equipment.
5. Accumulated debris is removed
   Over time, retained particles collect inside the strainer. The filtration element can be accessed and cleaned during scheduled maintenance to restore effective flow and filtration performance.

The filtration rating, screen design and strainer configuration should be selected according to the fluid, operating conditions, required flow rate and particle size involved in the application.

Features of T Type Strainer

T Type Strainers are designed to remove unwanted solid particles from process pipelines and help protect downstream equipment. Their configuration and filtration element can be selected according to the requirements of the application.

Efficient Particle Filtration

The filtration screen retains unwanted particles such as dirt, rust, scale and other debris from the process fluid. The screen opening or filtration rating can be selected according to the required level of particle removal.

Robust Industrial Construction

A T Type Strainer is designed for use in industrial pipeline systems where reliable filtration and mechanical strength are important. Material and construction should be selected according to the fluid, temperature, pressure and operating environment.

Easy Screen Inspection and Cleaning

The filtration element can be accessed for inspection and cleaning during maintenance. Regular cleaning helps remove accumulated debris and maintain effective flow through the strainer.

Reliable Pipeline Protection

By removing unwanted solid particles before they reach downstream components, the strainer can help protect pumps, valves, meters and other equipment from contamination-related problems.

Flexible Connection Options

T Type Strainers can be configured with connection arrangements suited to different pipeline layouts and installation requirements. The appropriate connection should be selected according to the pipeline design and project specifications.

Suitable for Industrial Process Systems

T Type Strainers can be used in a range of industrial process and pipeline applications where filtration of solid particles is required. Their suitability depends on factors such as fluid type, operating conditions, flow rate and required filtration level.

T Type Strainer Technical Specifications

Applications of T Type Strainers

T Type Strainers can be used in industrial pipelines where solid particles need to be removed from process fluids before they reach pumps, valves and other downstream equipment. Their application depends on the fluid characteristics, operating conditions and required filtration level.

Water and Wastewater Treatment

T Type Strainers can help remove suspended particles and debris from water and process lines. They may be used to protect pumps, valves and other equipment in water and wastewater treatment systems.

Oil and Gas Systems

In oil and gas applications, strainers can help protect downstream equipment from unwanted solid contaminants in process and utility lines. Material selection and filtration requirements should be matched to the operating conditions.

Chemical Processing

Chemical processing systems may require filtration to prevent solid particles from entering sensitive equipment. T Type Strainers can be considered for suitable chemical services when the strainer materials are compatible with the process fluid.

Power Generation

Power plants use various water, utility and process-fluid systems where filtration can help protect pumps, valves and other components. T Type Strainers may be selected for suitable applications based on system requirements.

Pharmaceutical Processing

Pharmaceutical processing requires careful control of contamination and material compatibility. T Type Strainers can be considered for appropriate fluid-handling applications where the construction materials and filtration arrangement meet the process requirements.

Steam and Utility Lines

Strainers can be used in suitable steam and utility lines to help remove unwanted particles and protect downstream equipment. Selection should consider operating temperature, pressure and the specific service conditions.

Process Industries

Manufacturing and process industries often use filtration equipment to protect equipment and maintain cleaner process fluids. T Type Strainers can be integrated into suitable pipeline systems according to the required filtration performance.

Industrial Fluid Handling

T Type Strainers can be used across industrial fluid-handling systems where protection against solid particles is required. They may be suitable for different liquid or compatible process-fluid applications depending on the design and operating conditions.

Advantages of T Type Strainers

There are many advantages of using T Type Strainers for pipeline processes.

Removal of Unwanted Pipeline Debris

The T Type Strainers are useful in removing unwanted particles like dirt, rust, scale, sand and any other solid contaminants within the pipeline.

Protection of Equipment Downstream

Another advantage of using a T strainer is that it protects the equipment located downstream from the strainer. The strainer will remove the particles before reaching the pump, valve and other pieces of equipment.

Filtration of Particles

The filtration screen provides physical protection against particles that are bigger than the selected openings. Specifications of the screen can be determined by the required filtration level.

Ease of Maintenance

Inspection and cleaning of the filtration media are possible based on the design of the strainer. It allows keeping the flow rate and filtration capability in the required parameters.

Strong Construction

Strainers of T Type may be made from appropriate materials depending on the conditions of usage. Right selection of the construction material gives resistance to the influences of pressure, temperature and process medium.

Less Probability of Particulate-Induced Troubles

Particulate impurities entering delicate equipment may lead to clogging, mechanical damage and decreased efficiency of work. Installation of a proper strainer before can help to minimize the number of undesired particles getting into these devices.

Applicability to the Industrial Pipeline System

Strainers of T Type may be integrated into various industrial pipeline systems. They may be used in those cases when filtration of the pipeline and protection of downstream equipment are needed.

T Type Strainer vs Other Strainers

Different strainer designs are suited to different pipeline layouts, flow conditions, filtration requirements and maintenance needs. The choice between a T Type Strainer and other strainer designs should therefore be based on the specific application and system configuration.

T Type Strainer vs Y Type Strainer

A T Type Strainer and Y Type Strainer both remove solid particles from process fluids, but their body configurations and installation arrangements differ. T Type Strainers can be considered where the pipeline layout and available maintenance space suit a T-shaped configuration, while Y Type Strainers are commonly used where a compact inline arrangement is preferred. The final selection should consider flow direction, pressure drop, space and cleaning requirements.

T Type Strainer vs Basket Strainer

Basket Strainers generally use a larger removable basket that can provide greater dirt-holding capacity for applications with higher levels of contamination. A T Type Strainer may be considered where the required filtration duty, pipeline arrangement and maintenance requirements suit its configuration. Basket size, filtration area and cleaning frequency should be evaluated before selecting either option.

T Type Strainer vs Duplex Strainer

A Duplex Strainer typically has two filtration chambers, allowing one side to remain in service while the other is isolated for cleaning. This can be useful for systems that require continuous filtration. A T Type Strainer generally has a simpler single-strainer arrangement and may be suitable where the pipeline can be stopped or isolated during maintenance.

T Type Strainer vs Temporary Strainer

Temporary Strainers are generally installed for short-term protection, often during commissioning, flushing or the initial operation of a pipeline system. A T Type Strainer is intended as a more permanent filtration arrangement where ongoing particle removal and equipment protection are required. The appropriate choice depends on whether the filtration requirement is temporary or part of normal system operation.

How to Select the Right T Type Strainer?

The choice of the right T Type Strainer will involve a consideration of several aspects regarding the pipeline and processes. These include the following:

Pipeline Size

It is important to take into account the required size of the strainer and its connection arrangement. Proper strainer sizing is important to ensure adequate flow in the system.

Flow Rate

The normal, minimum and maximum flow rates in the process must be known. The strainer should have the necessary flow rate capacity without any unnecessary pressure drop.

Process Fluid or Media

It is important to identify the fluid or gas that will pass through the strainer. The strainer must be compatible with the process medium.

Process Pressure

It is important to take into account the normal pressure and the maximum pressure that may occur in the pipeline. The chosen strainer should have a proper pressure rating.

Process Temperature

This aspect will help to choose the materials and the strainer components that can operate at the minimum and maximum process temperatures.

Filtration Level Required

It is important to know the size of particles that are to be filtered.

Size of Screen or Mesh

The size of screen or mesh controls the approximate size of particles that will be retained. Smaller screens offer better filtration but will also be prone to more frequent cleaning depending on the level of contamination.

Material of Body

The body material must be chosen in line with the process fluid, pressures, temperatures and environment. Typical industrial needs may demand varying materials in the body construction of metal.

Type of Connection

Take into account the type of pipeline connection that is needed, whether flanged, screwed, welded or others. The type of connection needs to fit the piping system.

Installation Needs

It is important to consider available installation space, accessibility and flow direction prior to installation. There should be enough space for inspection and cleaning of the strainer element.

Cleaning and Maintenance Needs

Think about the frequency with which the strainer requires inspection and cleaning. Processes with higher contamination will have the need for regular maintenance or easy access to screen.

Using the services of an experienced T Type Strainer provider in India can go a long way in ensuring the correct configuration of strainer for your pipeline.

Why Choose Asten Controls for T Type Strainers?

Asten Controls brings experience in industrial valve manufacturing and flow-control solutions for different industrial applications. With an Ahmedabad-based manufacturing facility and ISO 9001:2015 certification, Asten is known as the T type strainer manufacturer in India. The company also provides engineering support to help customers select suitable valve and filtration solutions based on process and operating requirements.

Industrial Valve Manufacturing Experience

Established in 2008, Asten Controls has experience in manufacturing and supplying industrial valve solutions for various industries and process applications.

ISO 9001:2015 Certified Company

Asten Controls operates as an ISO 9001:2015 certified company, reflecting its focus on quality management and consistent manufacturing processes.

Ahmedabad Manufacturing Facility

Asten Controls’ manufacturing facility is located in Ahmedabad, Gujarat, providing a local base for the production and supply of industrial flow-control products.

Engineering Expertise

Asten has a qualified and experienced team with engineering knowledge in industrial valve solutions. This supports product selection and configuration according to application requirements.

Quality-Focused Manufacturing

Quality is a stated focus of Asten Controls, with the company highlighting precision manufacturing, quality processes and product testing as part of its manufacturing approach.

Application-Based Solutions

Asten considers factors such as process media, pressure, temperature, flow and installation requirements when selecting or configuring industrial valve solutions. This approach can also support the selection of suitable strainer solutions for different pipeline applications.

Custom Product Solutions

Where required, Asten provides customised valve configurations based on application and operating requirements. The availability of specific T Type Strainer configurations should be confirmed with the Asten engineering team for the intended application.

Frequently Asked Questions About T Type Strainers

What is a T Type Strainer?

A T Type Strainer is a type of filtration device for a pipeline that consists of a T-shaped body and a filter screen or filtration element inside it. It helps filter solid particles from the process medium to prevent downstream equipment from being clogged by the unwanted particles.

What is the function of a T Type Strainer?

The main function of a T Type Strainer is to filter contaminants from a pipeline to prevent any downstream equipment such as pumps, valves, heat exchangers, and other components from facing issues caused by particles.

How does a T Type Strainer work?

The process fluid passes through the strainer where it goes through an internal screen. Contaminants in the form of particles larger than the size of the openings of the screen will get stuck, and filtered fluid will pass through the pipeline. The screen can be cleaned based on the design of the strainer.

Where are T Type Strainers used?

The T Type Strainer is useful in pipelines and fluid handling systems where filtration is needed. Applications can be water systems, process industries, chemical systems, oil and gas industry, utilities and industrial fluid systems, among others, as long as the right materials and design is used.

What is the difference between a T Type Strainer and a Y Type Strainer?

A T Type Strainer has a T-shaped body, while a Y Type Strainer has a Y-shaped configuration with the screen positioned at an angle. Selection depends on pipeline layout, space, flow requirements and maintenance needs.

How often should a T Type Strainer be cleaned?

Cleaning frequency depends on the amount of debris in the fluid and operating conditions. Regular inspection is recommended, with cleaning required when debris buildup affects flow or increases pressure drop.

How do I select the right T Type Strainer?

Consider the fluid type, pipeline size, flow rate, operating pressure and temperature, filtration requirements and installation space. The final selection should match the specific application requirements.

Get the Right T Type Strainer for Your Application

Looking for a T Type Strainer for use in your industrial pipeline? Just share your pipeline size, media, pressure and temperature with us. We will assist you in identifying the proper configuration of strainer to suit your application.

As a seasoned T Type Strainer manufacturer and supplier in India and pipeline strainer supplier, we know the importance of choosing the right filtration system based on real process needs. With the right body material, screen setup, connection type and filtration, dependable pipeline filtration and protection can be achieved.

Just get in touch with us using your application details and we will be happy to help you determine the proper T Type Strainer or T Type filter configuration for your process system.
