3 Piece Ball Valve

What is a 3 Piece Ball Valve?

Three Piece Ball Valve is an isolation quarter-turn valve that features three separate body parts connected with bolts. The middle part contains the ball, seats, and stem, while the other two ends stay permanently connected to the pipeline when performing the maintenance.

The three-piece structure makes servicing very easy since the inside parts can be viewed, cleaned or replaced without taking out the entire valve from the pipeline. This helps to cut maintenance costs and avoid production downtime.

Features of Asten 3 Piece Ball Valve

•       Full Port Structure – Ensures unrestricted flow and minimal pressure drop.
•       Blow-Out Proof Stem – Prevents any possibility of the stem being ejected under high pressure.
•       Investment Cast Body – Ensures better strength and dimensional accuracy.
•       Anti-Static Device – Helps safely remove the static electricity that may occur when handling flammable material.
•       Fire Safe Design – Makes sure that the valve performs its sealing even in fire conditions.
•       Lockable Lever – Helps lock the valve in an open or closed position to ensure greater safety.
•       ISO 5211 Flange – Makes direct mounting of pneumatic or electric actuators possible.
•       Leak Proof Design – Precisely machined parts help ensure sealing efficiency.
•       Valve Maintenance without Disassembly – The center body of the valve can be disassembled without removing the valve from the pipeline.

Technical Specifications

End Connection Options

Threaded End

The 3 Piece Ball Valve with threaded ends is most appropriate for small piping systems that need quick assembly and easy replacement.

Flanged End

The 3 Piece Ball Valves with flanged ends are suitable for industrial pipelines that have medium and high pressures.

Socket Weld Ends

Socket weld connection provides leak proof joints for small pipe sizes.

Butt Weld Ends

Butt weld end valves are useful for high pressure and high temperature applications.

3 Piece Ball Valve – Working Principle

The principle behind the operation of the 3 Piece Ball Valve lies in its quarter-turn functionality. The rotation of handle/actuator through 90 degrees results in the rotation of the ball inside the valve.

When the ball and the bore of the valve are aligned, fluid flows through with little obstruction. Turning the ball at right angles to the flow direction closes off the flow passage and allows positive shut-off.

Applications of 3 Piece Ball Valve

This Stainless Steel 3-piece ball valve is extensively employed in many industries because of its ruggedness, non-corrosiveness, and maintenance-free design.

•       Chemical processing – Effective handling of corrosive process media in industrial settings.
•       Pharmaceutical – Hygienic flow control in pharmaceutical production plants.
•       Food & Beverages – Applicable in sanitary applications needing clean and uncontaminated flow.
•       Water treatment – Control of water distribution and water treatment process.
•       Oil & Gas – Efficient operation in upstream, midstream, and downstream pipeline systems.
•       Petrochemical – Industrial applications involving difficult chemical processes with different pressures.

Advantages of 3 Piece Ball Valve

3 Piece Ball Valve have several advanatges than convenient traditional ball valves. Being a leading 3 Piece Ball Valve manufacturer and supplier our offered ball valve offer several advanatges. Some of them are given as below:

•       Easier maintenance – The three-piece design enables maintenance without removing the valve from the pipeline.
•       Durable internals – Seats, seals, and other internal components may be separately replaced.
•       Reduced down time – Quicker maintenance results in minimal disruptions and costs of maintenance.
•       Long lasting – The robust design ensures reliable operation through many operating cycles.
•       Better sealing – The design guarantees accurate sealing between the ball and the seat providing a perfect shut-off.

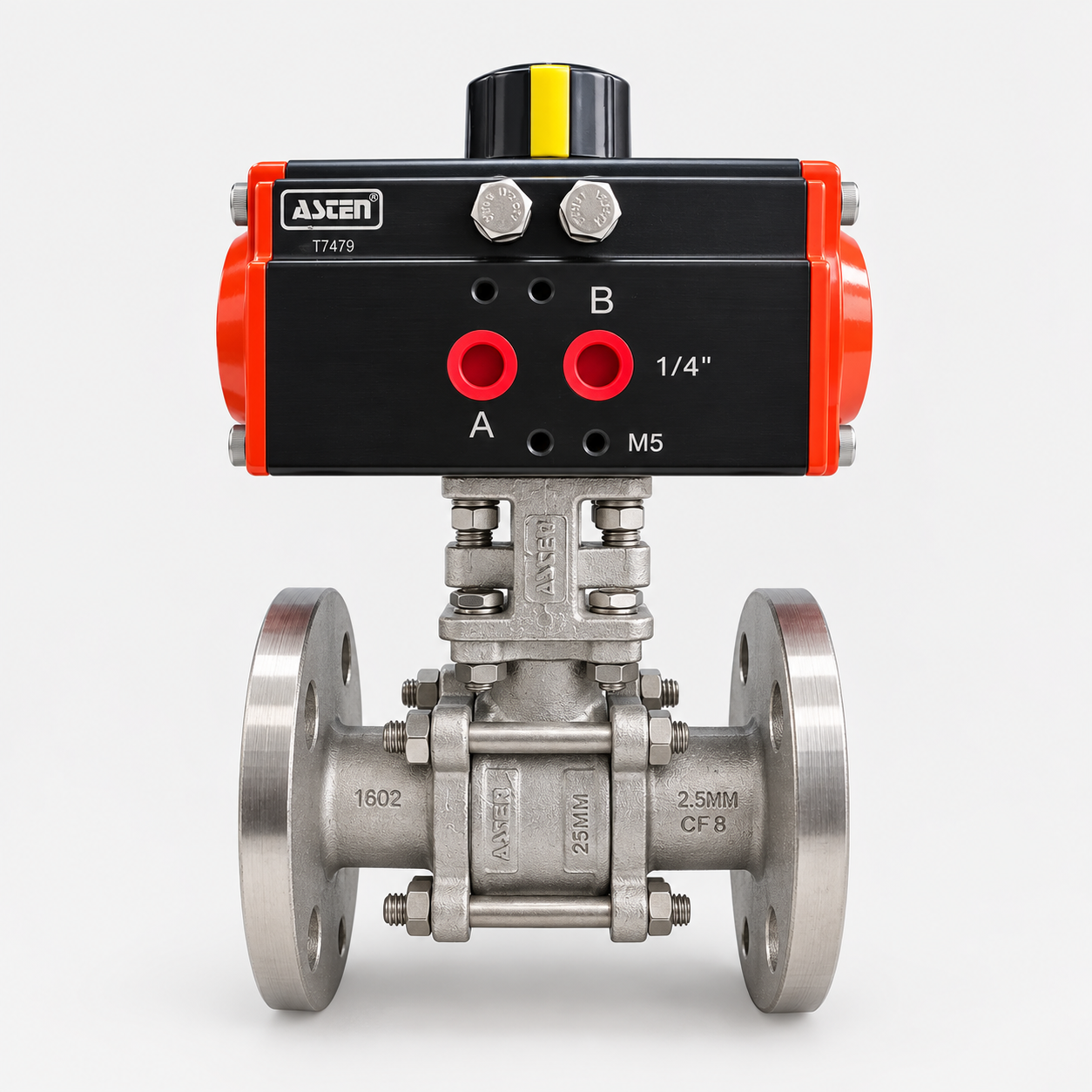

•       Fully automatic – Easily modified into a Pneumatic Ball Valve or Electric Ball Valve with ISO 5211 mounting.

Why Choose Asten Controls?

Asten Controls is one of the reputed names among all the 3 Piece Ball Valve manufacturer and supplier in India. Our offer top quality industrial valves not only provide durability but also offer long lasting performance. We are manufacturing a range of 3 Piece Ball Valves using advanced machineries and premium raw materials. Each valve is configured for reliable operation, best performance and easy maintenance. Our dedicated support team is always available to offer the best product solution, competitive price quote, technical assistance and timely delivery. Our custom solutions and export capabilities made us one of the top 3 Piece Ball Valve manufacturers. We are the preferred choice for industries searching for reliable flow control solutions.

Quality Standards

Our 3 Piece Ball Valve is produced according to international quality standards providing safety, effectiveness, and reliability of our products.

•       API 598 – Valve inspection and pressure test.
•       API 607 (Fire Safe) – Fire safe performance for critical conditions.
•       ISO 17292 – Industrial metallic ball valve manufacturing standard.
•       ASME B16.34 – Design, pressure-temperature ratings and materials.
•       ISO 5211 – Actuator mount interface.

Frequently Asked Questions

What is a 3 Piece Ball Valve?

A 3 Piece Ball Valve is a quarter turn valve consisting of three pieces that can be maintained by removing the center piece without taking the valve out of line.

How is a 3 Piece Ball Valve different from a 2 Piece Ball Valve?

The Three-Piece Ball Valve can be maintained in line without taking the valve out of line but the two-piece ball valve may have to be removed for maintenance.

Which materials do you offer?

The 3 Piece Ball Valve is available in SS304 3 Piece Ball Valve, SS316, CF8, CF8M, WCB, and many more grades of stainless steel / carbon steel as per the applications.

Can it be used with Pneumatic Actuators?

Yes. The Pneumatic Ball Valve is very easy to install as an actuated valve with the ISO 5211 mounting pad.

Which pressure ratings do you offer?

Pressure ratings start at 1000 WOG and higher ANSI Classes, as per valve type, material and end connections.

Request a Quote

Contact Asten Controls for premium-quality 3 Piece Ball Valves engineered for reliable shut-off, easy maintenance, and long service life. Known as the leading 3 Piece Ball Valve manufacturer and supplier, we offer premium quality ball valves with minimum maintenance, longer life and best performance. Our experts can recommend the right valve based on your operating conditions.
