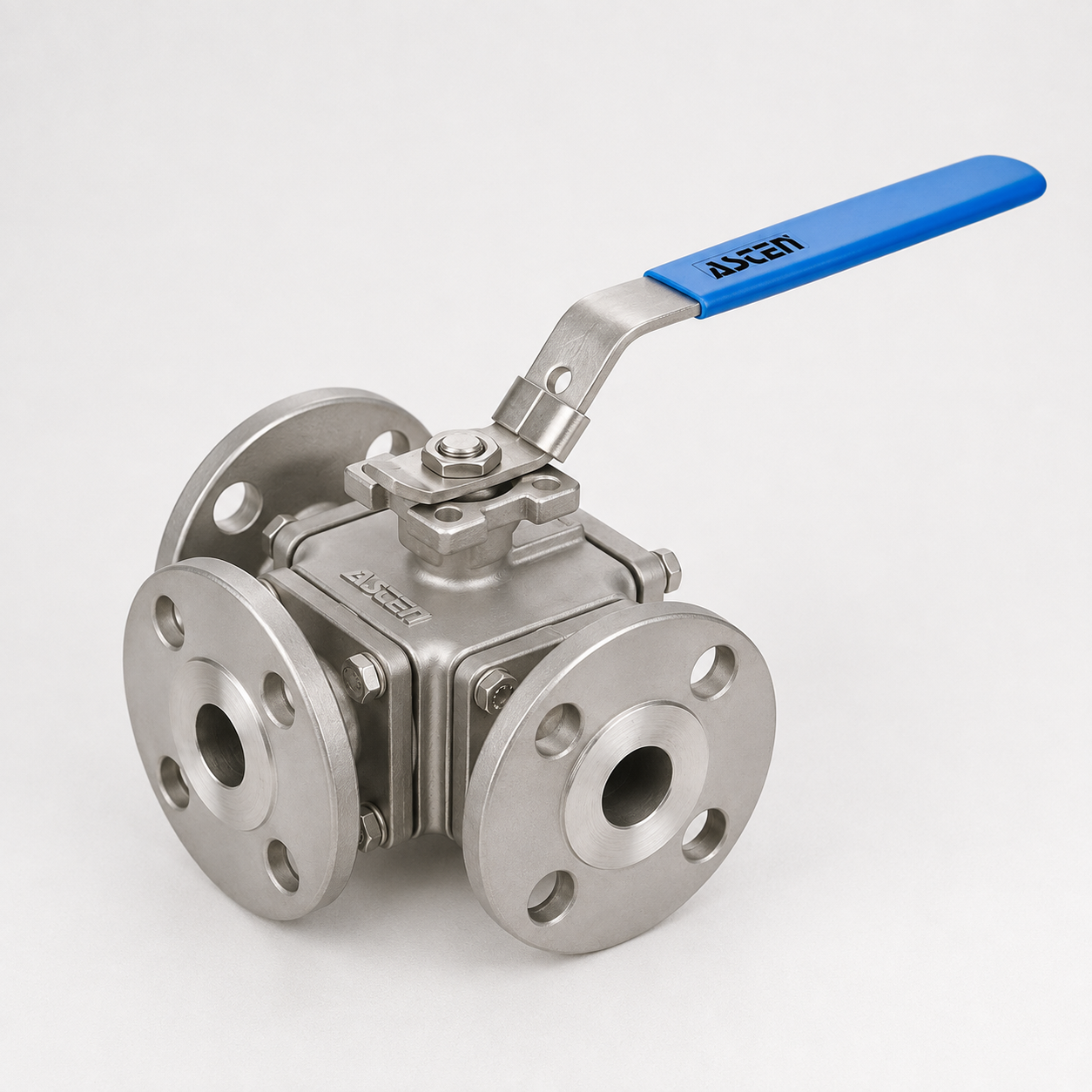

3 Way Ball Valve

What is a 3 Way Ball Valve?

The three way ball valve is basically a quarter turn valve that features three ports, which help in the flow of media to be regulated and directed in various directions through different pipeline connections. As against the two-port ball valves, the three port ball valve allows many flow options with only one valve.

Types of 3 Way Ball Valves (L-Port & T-Port)

There are two basic types of Three Way Ball Valve available based on their applications.

L Port 3 Way Ball Valve

L Port Ball Valve incorporates an L shaped bore in the ball to control the flow among two selected ports, while the remaining port is closed. It is mainly used to direct flow from one of the two selected inlet/outlet ports to the other.

Such valves are widely installed in chemical processes, water purification, pharmaceutical production facilities, and the utilities industry.

T Port 3 Way Ball Valve

A T Port Ball Valve contains a T shaped internal passage which facilitates several combinations of flows. Flowing through all three ports at once or flowing between different ports based on valve orientation is possible.

A T Port Ball Valve is most commonly used in the application of mixing two flow streams or splitting the inlet flow stream into multiple outlets.

Features of Asten Controls 3 Way Ball Valve

Industrial 3 Way Ball Valve is specially engineered to offer reliable performance along with durability in all kinds of industries.

Some important features include:

•       Rapid opening and closing due to quarter-turn design
•       T-Port and L-Port versions available
•       Bubble-tight shut-off with negligible leakage
•       Low operating torque requirement
•       For manual, electric, and pneumatic operations
•       Threaded 3 Way Ball Valve and Flanged 3 Way Ball Valve options available
•       Corrosion resistance
•       Chemical resistance
•       High pressure and high temperature resistant

These properties make it the perfect choice for use as a Flow Control Valve in tough process applications.

Materials of Construction

Choosing the right material is important in ensuring that the valve is durable, corrosion resistant and compatible with the process fluids.

Our Stainless Steel 3 Way Ball Valve is the most popular choice for its exceptional strength and resistance to corrosion. The choice of material varies depending on the needs of the application. Our valves are made from materials such as:

•       Stainless Steel (SS304, SS316, SS316L)
•       Carbon Steel
•       Cast Steel
•       Brass
•       Bronze
•       Duplex Stainless Steel
•       Alloy Steel

Seating is made from PTFE, RPTFE, PEEK and other high performance sealing materials to ensure that there is proper seating under varying conditions of operation.

The wide range of material options allows our valves to work effectively in corrosive chemicals, steam lines, water, oil, and gas and high temperature industrial processes.

Working Principle

The working principle of the 3 Way Ball Valve is through rotation of a precisely machined ball inside the valve.

There are either L-type or T-type passages available inside the ball. As soon as the valve handle or the actuator rotates the ball by 90 degrees, various passages inside the valve become aligned with the openings in the valve to permit flow in the desired direction.

Depending on the ports arrangement, the valve may:

•       Reroute the flow from one inlet towards any of the two outlets
•       Merge two inlet flows to one outlet
•       Distribute one inlet to several outlet conduits
•       Seal off certain flow routes completely

The valve operates very quickly and reliably due to the easy quarter-turn movement that provides low pressure drop and good sealing.

Applications & Industries

The 3 Way Ball Valve is popular in industries where multiple flow routes need to be managed using one valve.

These include the following:

•       Chemical processing
•       Oil & gas
•       Petrochemicals
•       Water treatment plants
•       Pharmaceutical production
•       Food & beverages processing
•       Electric power generation
•       Heat, Ventilation, Air Conditioning (HVAC)
•       Pulp & paper
•       Textiles
•       Maritime sector
•       Automation
•       Process Engineering
•       Compressed air systems
•       Utilities

When mounted as a Flanged 3 Way Ball Valve, Threaded 3 Way Ball Valve, or Pneumatic 3 Way Ball Valve, these valves increase process efficiency while simplifying pipe work and maintenance.

Why Choose Asten Controls?

Asten Controls is a reputed 3 Way Ball Valve manufacturer and supplier in India. Our high quality ball valve is developed for durability, performance and operational efficiency. They are designed for smooth operation and long life performance using advanced manufacturing capabilities and commitment to quality. Our customer support services ensures technical support, services and timely delivery along with manufacturing expertise. Client can contact us with their varied requirement as we provide customize valve solution such as pressure ratings, connections and materials to fulfil their application requirements.

FAQs

What is a 3 Way Ball Valve?

It is a type of quarter turn ball valve that consists of three ports which control, direct, or mix the flow of fluid and gases. It offers several flow paths using a single valve and makes industrial piping systems more efficient.

What is the difference between L Port and T Port Ball Valve?

The L Port Ball Valve is used primarily to divert flow from one port to another port. The T Port Ball Valve is capable of diverting, distributing, and mixing the flow of fluids using different ports simultaneously.

Where are 3 Way Ball Valves Used?

They are widely used in industries including chemical plants, oil & gas, water treatment plant, pharmaceutical industry, food industry, HVAC, power plants, and industrial automation.

How Does 3 Way Ball Valve Operate?

A Three Way Ball Valve operates by rotating a hollowed out ball through 90 degrees. Based on the L port or T port configuration, the valve switches, mixes, or isolates the flow through three ports.

Request a Quote

Do you require an efficient 3 Way Ball Valve Manufacturer & 3 Way Ball Valve Supplier in India? We offer the best performing Industrial 3 Way Ball Valves that have been designed for optimum performance and durability. Some of our valves include L Port 3 Way Ball Valve, T Port 3 Way Ball Valve, Stainless Steel 3 Way Ball Valve, Pneumatic 3 Way Ball Valve, Flanged 3 Way Ball Valve and Threaded 3 Way Ball Valve.
